525-364

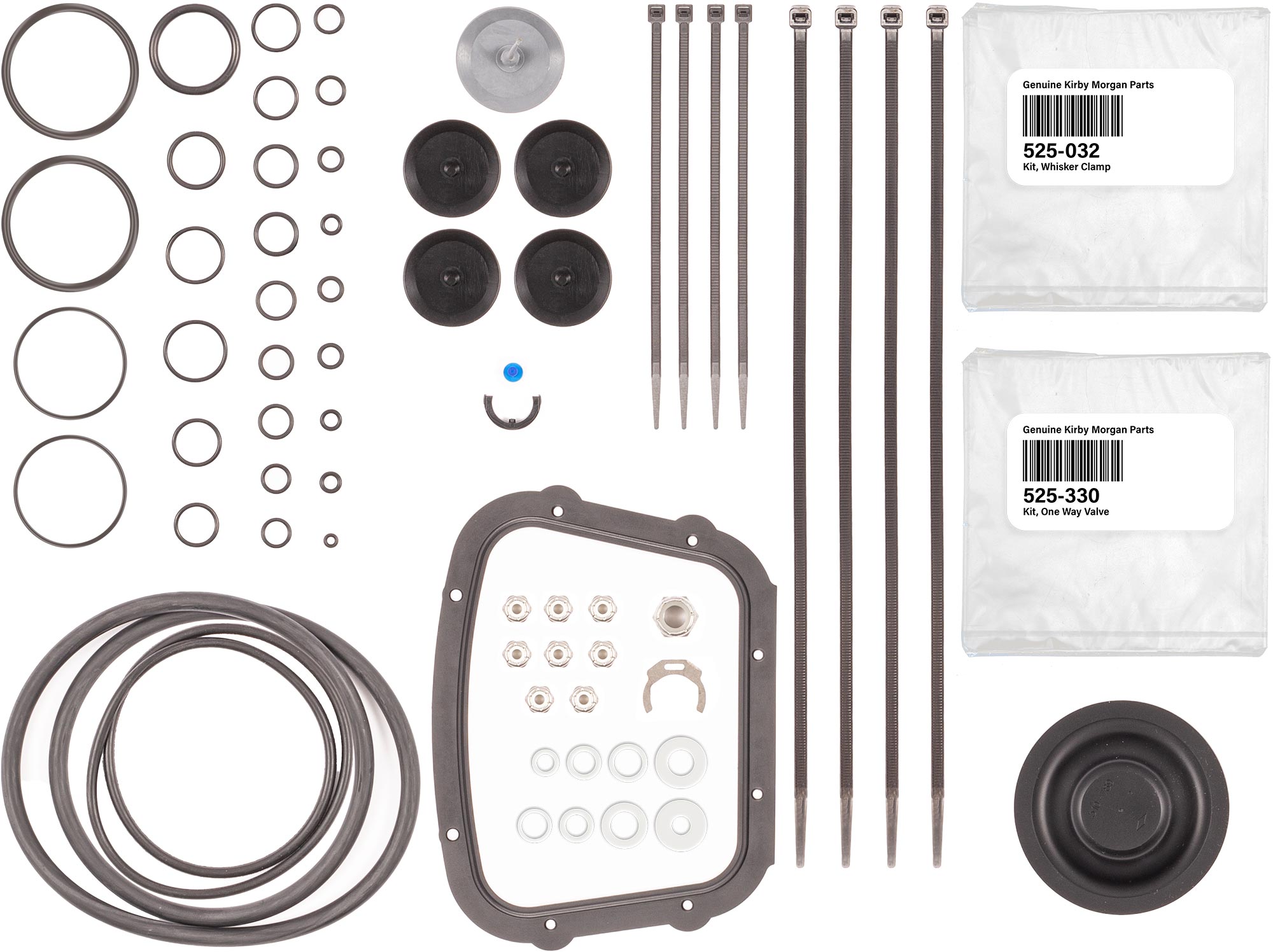

KM 97 Soft Goods Overhaul Kit
525-364
525-364
Part # Description Qty.
210-055 O-ring, Balanced 2
210-060 Valve Seat 1
220-056 Lever Bearing Clip 1
310-003 O-ring 4
510-008 O-ring 3
510-010 O-ring 3
510-012 O-ring 2
510-013 O-ring 1
510-014 O-ring 2
510-015** O-ring 3
510-017 O-ring 1
510-018 O-ring 1
510-019 O-ring 2
510-029 O-ring 2
510-260 O-ring, View Port 1
510-403 Gasket, Pod 1
510-450 O-ring, Neck Ring 1
510-481 O-ring 2
510-483 O-ring 1
510-490 O-ring 1
510-550 Valve, Oral Nasal 1
510-776 Exhaust Valve 4
510-789 Diaphragm Assembly 1
520-030 Washer 1
520-031 Washer 1
520-033 O-ring, Teflon® 2
520-038 Tie Wrap 4
520-042 Tie Wrap 4
520-167 Teflon® Washer for Swing Catch 1
520-522 Washer 1
520-523 Washer 1
525-032 Kit, Whisker Clamp Replacement 1
525-330 One Way Valve kit 1
530-028 Lock Nut 1
530-145 Lock Nut 8
540-531 Lock Clip 1
550-640 Shaft Bearing Washer 1
